Flat Die Pelleting Presses/Granulator
With the fast development of Wood Pellets industry, flat die pellet mill becomes very popular in the world. It has the advantages of low price, low consumption, high capacity, etc. It is a good choice for small farming families. It is one kind of energy source machine which can process wood sawdust, wood lump, and is an agro-waste resource.
|
|
|
|
|
Flat Die Pellet Mill |
With electric motor |
With diesel motor |
|
|
|
|
|

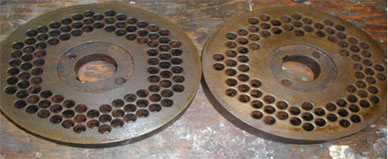

Pellet Die |

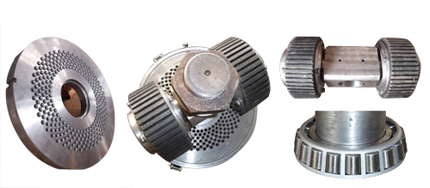

Pellet Die & Roller |
Electrical Control Cabinet |
|
|
|
|
|
Production Process |
Finished Pellets |
Burning Wood Pellet Fuel |
The Flat Die Pelleting Presses/oil cake Granulator can process oil cake and other mixed waste materials all at one time. It is columned granule feed for livestocks such as layers in chicken cages and have slippery firm. During the process of producing granule, the temperature can almost reach 70—80 centigrade. The flat die pelleting presses can make fecula into paste. The inner granule is cooked and fully penetrated, and is not easy to go moldy or degenerative. Then Flat Die Pellet Mill can be stored for a long time and will improve poultry dainty and assimilation function. It also can shorten the period of feeding, so this flat die pelleting presses can efficiently reduce many users' productive cost.
D Type Pellet Mill with Flat Die for Sale
D Type Flat Die Pellet Machine driven by Electric Engine
| Model | Power | Capacity(kg/h) | Weight(nw/gw) | Packing Size(mm) |
|---|---|---|---|---|
|
ZLSP-D 150B
|
5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 |
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 |
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 |
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 |
| The following series is designed with Electric motor with enclosure. | ||||
| ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 |
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 |
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 |
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 |
D Type Flat Die Pellet Machine driven by Diesel, Gas and PTO
| Driven by | Model | Power | Capacity (kg/h) | Weight (nw/gw) | Packing Size (mm) |
|---|---|---|---|---|---|
| Diesel engine | ZLSP-D150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | |
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | |
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | |
| ZLSP-D 300A | 55 HP | 250-400 | 410-450 | 1220x600x1000 | |
| Gasoline engine | ZLSP-150Q | 10kW | 90-120 | 180-220 | 1000x500x750 |
| PTO (power take off) | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | |
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | |
| ZLSP-D 260P | 33 HP | 160-250 | 235/255 | 1050x540x900 | |
| ZLSP-D 300P | 41 HP | 250-400 | 305/325 | 1100x540x1000 |
There is also another Pellet Mill with Rotating Roller.
For Wood Pellet Fuel
As we all know, the original design of flat die pellet presses were used for processing feedstuff. Through our client's feedback and diligent research, flat die pellet mill is applied in processing wood sawdust, straw, different kinds of stalks, grass, etc. When process wood materials, whether they need a binder added into them depends on the fiber content and resin content of the raw material. The materials need to have certain content of resin content to bind them together. If the raw material doesn't have enough resin content, little binder such as oil cake or fecula residue is needed. During our testing process, if add a little binder into the material, the appearance of final pellets will become a bright wood pellet fuel.
For Feedstuff
As one kind of renewable energy machine which can process wood sawdust, wood lump and other agro-waste materials, our GC-9PK series flat die pelleting presses are very popular for farmers who feed large quantity of animals in China. Our feed pellet mill features cheap price, low consumption, high capacity etc. This series feed pellet mill is a desirable choice for small feeding plant which can save time and cost for them.
During the process of pelletizing, the temperature of feed pellet mill can reach 70-80 centigrade, which can make fecula into paste. The granule inside wood pelletizer has already been fully cooked. Because lignin in plants is indigestible by animal enzymes, the cooking process can decompose the lignin. So the pellets after being cooked will not easily become moldy and/or degenerative, thus the pellets can be stored for a longer time. At the same time, it can improve the dainty and assimilation function of animal feedstuff. Pelletizing the animal feedstuff by flat die pellet mills can shorten the period of feeding, which make feeding more efficiently and lower the user's production cost.
Raw Material
The best moisture content for wood pelletizer is between 13%-15%.
The best size of raw material granule is under 4mm in diameter.
