YZS Series Oil Press

What is YZS series oil screw press ?

The YZS series oil screw press is an advanced oilseed processing machine. Characterized by their high oil output rate, good quality, simple design, easy,and continuous operation. These oil seed mill can be used to preocess various oil seeds, such as peanut, beans, rape and cotton seeds, sesame, olive, sunflower, coconut, grass seed etc.

Stracture of the YZS series oil screw press

This kind of oil screw press is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc. It press soybean and cotton seeds very well. It utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
structure of screw oil press

How does the YZS series oil screw press work?

YZS series oil screw press that presses oil seeds through a caged barrel-like cavity. Raw materials enter one side of the press and waste products exit the other side. The machine uses friction and continuous pressure from the screw drives to move and compress the seed material. The oil seeps through small openings that do not allow seed fiber solids to pass through. Afterward, the pressed seeds are formed into a hardened cake, which is removed from the machine.

We offer oil press machines with different models and capacities. Below are the technical data of each model.
6yl 68 screw oil press

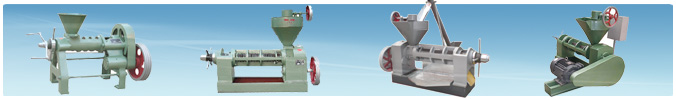

YZS-68 oil screw press YZS-80 oil screw press YZS-105 oil screw press
YL 130 expeller press
YZS-130 oil screw press YZS-160 oil screw press YZS-165 oil screw press

Main Technical Data of YZS series Oil Screw Press

MODEL CAPACITY(KG/H) POWER(KW) NET WEIGHT(KG) PACKING(MM)
YZS-68 40 5.5 130 1050*660*760
YZS-80 80-125 5.5 330 1320*440*695
YZS-95 160-200 11 420 1910*610*765
YZS-100 160-200 7.5 400 1860*550*695
YZS-120 200-300 11 700 2060*610*770
YZS-130 375-500 18.5 700 2320*700*780
YZS-160 550-700 18.5 920 2020*700*780
YZS-165 620-830 22-30 1600 2120*800*980
